More than 200 employees, 20 technicians, covering an area of 78000 square meters.
Established in 1977, JINHUA STRENGTH WOODWORKING MACHINERY is a professional manufacturer of solid timber preparation equipment. With years of hard work, STRENGTH has developed into the typical representative of in solid wood processing equipment line in China, an expert of intelligent complete set equipment for solid timber preparation handling.

  • -
    Founded in 1997
  • -+
    40+ years experience
  • -
    78000m² production shops
  • -+
    30+ kinds of machines

products

Innovation

  • Heavy duty Automatic Wood Planer/Wide Planer

    Heavy duty Automatic W...

    Specification Main technical parameter MBZ1013EL Max. working width 1350mm Max. wood thickness 150mm Min. wood thickness 8mm Max. cutting depth one time 5mm Cutter head speed 4000r/min Feeding speed 0-12m/min Main spindle motor 22kw Feeding motor 3.7kw Machine weight 3200kg Features * MACHINE DESCRIPTION Industrial automatic heavy duty wide planer. Heavy-duty casting iron working table. Automatic digital thickness controller for quick & accurate setting. Heavy-duty...

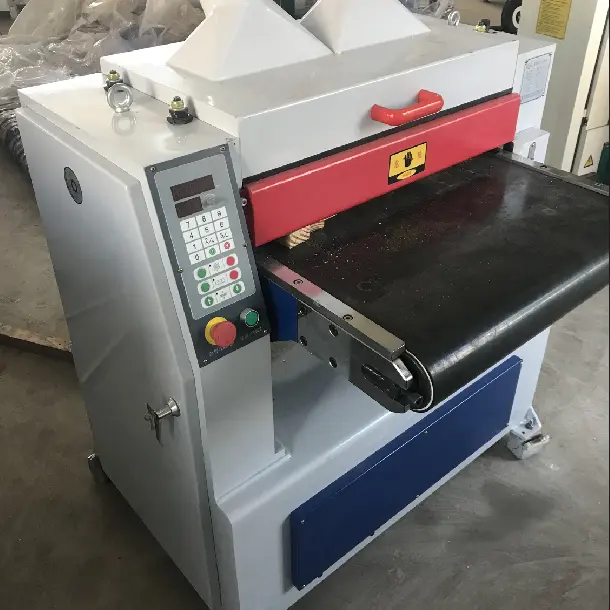

  • Heavy duty Automatic Wood Planer/Belt Thickness Planer

    Heavy duty Automatic W...

    Specification Main technical data MB106S Max. working width 640mm Working thickness 5-160mm Min. wood length 100mm Cutter head speed 6000r/min Feeding speed 0-25m/min Main motor power 7.5kw Belt feeding motor power 1.5kw Working table lifting motor power 0.37kw Total motor power 9.37kw Machine size 1310x1110x1210 Machine weight 800kg Features MACHINE SPECIFICATIONS Advanced automated heavy-duty model. Durable cast iron worktable with robust co...

  • Heavy duty Automatic Wood Planer/Thickness Planer

    Heavy duty Automatic W...

    Specification Main technical parameter MBZ105A MBZ106A Max. wood width 500mm 630mm Max. wood thickness 255mm 255mm Min. wood thickness 5mm 5mm Min. working length 220mm 220mm Max. cutting & planning depth 5mm 5mm Cutter head speed 5000r/min 5000r/min Feeding speed 0-18m/min 0-18m/min Main motor 7.5kw 11kw Machine weight 900kg 1000kg Features MACHINE DETAILS Automated heavy duty industrial type. Sturdy cast iron working table. Digital controller for automatic thic...

  • 16″/20′/24′ Industrial Wood Planer/Thickness Planer

    16″/20′/24...

    Specification Main technical data MB104H MB105H MB106H Max. wood width 400mm 500mm 630mm Max. wood thickness 180mm 180mm 180mm Min. wood thickness 5mm 5mm 5mm Min. wood length 220mm 220mm 220mm Max. cutting depth 5mm 5mm 5mm Cutter head speed 5000r/min 5000r/min 5000r/min Feeding speed 6.5, 9m/min 6.5, 9m/min 6.5, 9m/min Main motor 4kw 5.5kw 7.5kw Machine weight 420kg 500kg 600kg Features * MACHINE DESCRIPTION Heavy...

  • Jointer/Surface Planer With Helical Cutter Head

    Jointer/Surface Planer...

    Specification Main technical data MBZ503L MBZ504L Max. working width 300mm 400mm Max. working depth 5mm 5mm Cutter& head cutting diameter Φ100 Φ100 Spindle speed 5500r/min 5500r/min Motor power 2.2kw 3kw Workbench dimension 330*1850mm 430*1850 Machine weight 380kg 480kg Features *IN-HOUSE MANUFACTURING OF THE MACHINE BODY Heavy-duty casting iron working table. Hard chrome-plated table for maximum wear resistance. Extra-long, heavy-duty casting iron infeeding and outfee...

  • Heavy duty Automatic Wood Planer/Wide Planer

    Heavy duty Automatic W...

    Specification Main technical parameter MBZ1013EL Max. working width 1350mm Max. wood thickness 150mm Min. wood thickness 8mm Max. cutting depth one time 5mm Cutter head speed 4000r/min Feeding speed 0-12m/min Main spindle motor 22kw Feeding motor 3.7kw Machine weight 3200kg Features * MACHINE DESCRIPTION Industrial automatic heavy duty wide planer. Heavy-duty casting iron working table. Automatic digital thickness controller for quick & accurate setting. Heavy-duty...

  • Heavy duty Automatic Wood Planer/Belt Thickness Planer

    Heavy duty Automatic W...

    Specification Main technical data MB106S Max. working width 640mm Working thickness 5-160mm Min. wood length 100mm Cutter head speed 6000r/min Feeding speed 0-25m/min Main motor power 7.5kw Belt feeding motor power 1.5kw Working table lifting motor power 0.37kw Total motor power 9.37kw Machine size 1310x1110x1210 Machine weight 800kg Features MACHINE SPECIFICATIONS Advanced automated heavy-duty model. Durable cast iron worktable with robust co...

  • Heavy duty Automatic Wood Planer/Thickness Planer

    Heavy duty Automatic W...

    Specification Main technical parameter MBZ105A MBZ106A Max. wood width 500mm 630mm Max. wood thickness 255mm 255mm Min. wood thickness 5mm 5mm Min. working length 220mm 220mm Max. cutting & planning depth 5mm 5mm Cutter head speed 5000r/min 5000r/min Feeding speed 0-18m/min 0-18m/min Main motor 7.5kw 11kw Machine weight 900kg 1000kg Features MACHINE DETAILS Automated heavy duty industrial type. Sturdy cast iron working table. Digital controller for automatic thic...

  • 16″/20′/24′ Industrial Wood Planer/Thickness Planer

    16″/20′/24...

    Specification Main technical data MB104H MB105H MB106H Max. wood width 400mm 500mm 630mm Max. wood thickness 180mm 180mm 180mm Min. wood thickness 5mm 5mm 5mm Min. wood length 220mm 220mm 220mm Max. cutting depth 5mm 5mm 5mm Cutter head speed 5000r/min 5000r/min 5000r/min Feeding speed 6.5, 9m/min 6.5, 9m/min 6.5, 9m/min Main motor 4kw 5.5kw 7.5kw Machine weight 420kg 500kg 600kg Features * MACHINE DESCRIPTION Heavy...

  • Jointer/Surface Planer With Helical Cutter Head

    Jointer/Surface Planer...

    Specification Main technical data MBZ503L MBZ504L Max. working width 300mm 400mm Max. working depth 5mm 5mm Cutter& head cutting diameter Φ100 Φ100 Spindle speed 5500r/min 5500r/min Motor power 2.2kw 3kw Workbench dimension 330*1850mm 430*1850 Machine weight 380kg 480kg Features *IN-HOUSE MANUFACTURING OF THE MACHINE BODY Heavy-duty casting iron working table. Hard chrome-plated table for maximum wear resistance. Extra-long, heavy-duty casting iron infeeding and outfee...

  • Heavy duty Automatic Wood Planer/Wide Planer

    Heavy duty Automatic W...

    Specification Main technical parameter MBZ1013EL Max. working width 1350mm Max. wood thickness 150mm Min. wood thickness 8mm Max. cutting depth one time 5mm Cutter head speed 4000r/min Feeding speed 0-12m/min Main spindle motor 22kw Feeding motor 3.7kw Machine weight 3200kg Features * MACHINE DESCRIPTION Industrial automatic heavy duty wide planer. Heavy-duty casting iron working table. Automatic digital thickness controller for quick & accurate setting. Heavy-duty...

  • Heavy duty Automatic Wood Planer/Belt Thickness Planer

    Heavy duty Automatic W...

    Specification Main technical data MB106S Max. working width 640mm Working thickness 5-160mm Min. wood length 100mm Cutter head speed 6000r/min Feeding speed 0-25m/min Main motor power 7.5kw Belt feeding motor power 1.5kw Working table lifting motor power 0.37kw Total motor power 9.37kw Machine size 1310x1110x1210 Machine weight 800kg Features MACHINE SPECIFICATIONS Advanced automated heavy-duty model. Durable cast iron worktable with robust co...

  • Heavy duty Automatic Wood Planer/Thickness Planer

    Heavy duty Automatic W...

    Specification Main technical parameter MBZ105A MBZ106A Max. wood width 500mm 630mm Max. wood thickness 255mm 255mm Min. wood thickness 5mm 5mm Min. working length 220mm 220mm Max. cutting & planning depth 5mm 5mm Cutter head speed 5000r/min 5000r/min Feeding speed 0-18m/min 0-18m/min Main motor 7.5kw 11kw Machine weight 900kg 1000kg Features MACHINE DETAILS Automated heavy duty industrial type. Sturdy cast iron working table. Digital controller for automatic thic...

  • 16″/20′/24′ Industrial Wood Planer/Thickness Planer

    16″/20′/24...

    Specification Main technical data MB104H MB105H MB106H Max. wood width 400mm 500mm 630mm Max. wood thickness 180mm 180mm 180mm Min. wood thickness 5mm 5mm 5mm Min. wood length 220mm 220mm 220mm Max. cutting depth 5mm 5mm 5mm Cutter head speed 5000r/min 5000r/min 5000r/min Feeding speed 6.5, 9m/min 6.5, 9m/min 6.5, 9m/min Main motor 4kw 5.5kw 7.5kw Machine weight 420kg 500kg 600kg Features * MACHINE DESCRIPTION Heavy...

  • Jointer/Surface Planer With Helical Cutter Head

    Jointer/Surface Planer...

    Specification Main technical data MBZ503L MBZ504L Max. working width 300mm 400mm Max. working depth 5mm 5mm Cutter& head cutting diameter Φ100 Φ100 Spindle speed 5500r/min 5500r/min Motor power 2.2kw 3kw Workbench dimension 330*1850mm 430*1850 Machine weight 380kg 480kg Features *IN-HOUSE MANUFACTURING OF THE MACHINE BODY Heavy-duty casting iron working table. Hard chrome-plated table for maximum wear resistance. Extra-long, heavy-duty casting iron infeeding and outfee...
